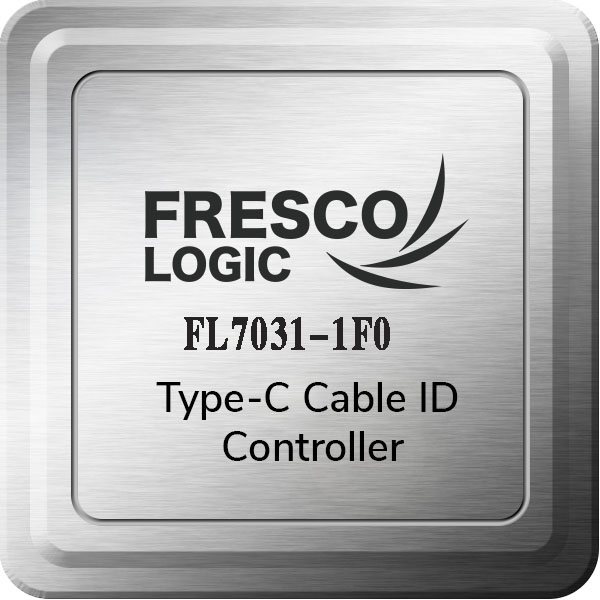

Type-C Cable ID Controller
- FL7031
- 咨詢熱線：13724213303
FL7031 is a PD3.0 compliant controller for Type-C cables. This controller is a low pin count solution for Type-C Cable Electronic Marking. No internal or external MCU is necessary making this an optimal solution for cost-sensitive applications. An on-chip eFuse memory allows for customization without an external EEPROM.
Features
Very Small Packages: 8-Bump WLCSP and 2×2 DFN_8L
Low BOM cost. Only 2 capacitors needed on connector paddle.
Single 5V power supply
Integrated LDO Regulator
Low Power consumption
Integrated eFuse for customization
Write Protect feature on the eFuse
In-Cable eFuse programming. Allows the ID to be set in final assembly.
I2C-based programming. Allows ID programming at wafer level or at final assembly.
PD3.0 Compliant
Vconn from 3.0V to 5.5V
Extended header support for PD messages
Protocol updates
eFuse can be programmed up to 2 times
Manufacturing code for eFuse to allow for customer product tracking
20V protection on the CC pin
