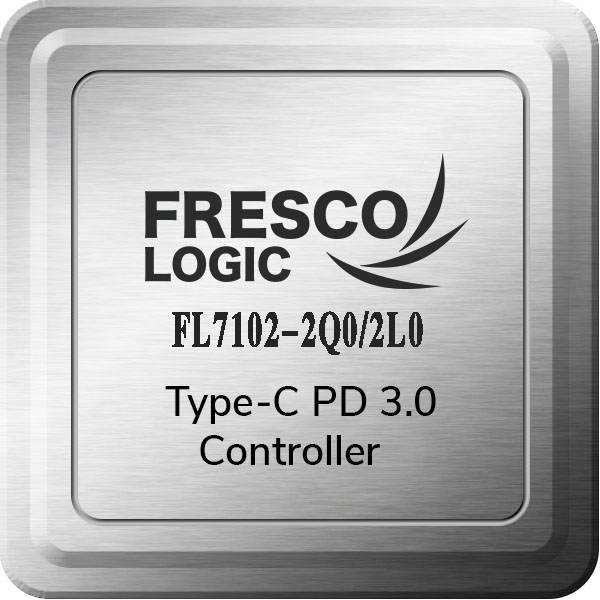

FL7102

USB3.1 Type-C PD3.0 Controller in Devices

The FL7102 is a highly integrated PD controller for the emerging USB 3.1 Type-C connector. It is an advanced Type-C Power Delivery controller which supports PD 3.0.  The FL7102-2Q0 supports two PD ports and the FL7102-2L0 supports one PD port.  They feature an integrated Aux switch, the Billboard device, Vconn switch, and support the TCPC specification in a single chip. They can be configured as DFP, UFP or DRP for various applications.

Features

• Small Package: QFN 40 and QFN 32 Packages

• PD 3.0 Support for up to two Type-C ports

• UCSI (USB Type-C Connector System Software Interface)

• TCPC (Type-C Port Controller Interface Specification)

• Fast Role Swap support

• VCONN Power Switch

• Integrated LDO Regulator

• 3V I/O Voltage

• Low Operating Power and low standby power

• Low Power Consumption when the Type-C is disconnected (<100uA)

• Embedded EEPROM for customization and Firmware

• Flexible GPIO with UART support

• MCU for autonomous operation

• I2C or SPI Interface for TCPC messaging

• I2C & GPIO interface for PD Power Supply control

• Support for Type-C Audio and Debug Accessories

• Dead battery support

• Firmware programmable for DFP, UFP or DRP

• In-system firmware updates over USB

• Support for 12MHz or 24MHz crystal
